I was setting up SSRS for use with SCOM 2012 and trying to configure reporting Services to use SSL with the actual server name and a more user friendly alias. We have a naming standard for our servers that includes department, service, and production state. This results in some user-unfriendly names (such as sys-scomdb-p01) so we end up adding an alias in DNS and adding a Subject Alternate Name to the certificate.
Howeever, when selecting the SSL certificate in Reporting Services Configuration Manager, it only reserved a URL using the CN on the certificate, so attempting to access SSRS using the alias/alternate name did not work.
I could not find any informaiton anywhere about getting SSRS to work using SSL and an alternate name on the certificate, so I looked around in the Reporting Services configuration file (rsreportserver.config) and discovered for myself how easy it is to get it to work.
First, remember that there are two virtual directories: ReportServer and Reports. The URLs are reserved for each virtual directory in rsreportserver.config. If you want to use the alias for both virtual directories, you will need to add a URL for both virtual directories:

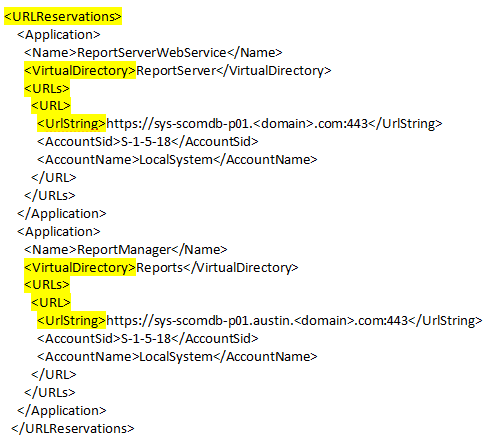

- Look for the <VirtualDirectory>tags. There will be a <URLS> child tag followed by <URL> and <UrlString>.
- Copy the XML code from <URL> to </URL> and paste it immediately below. There should now be two <URL> tags inside of the <URLs> tag. Edit the UrlString in one of the <URL> tags to use the alias.
If you look back in Reporting Services Configuration Manager, both URLs will now be displayed.
There’s a detailed article, Configure Reporting Services to Use a Subject Alternative Name, for SQL 2014 & 2016 on Microsoft’s site at https://msdn.microsoft.com/en-us/library/Dn771154.aspx.
